A Drainage System for a Wet Crawl Space

What a Crawl Space Drainage System Is and When It Is the Right Call

When is a drain the right call? When water is actually entering the crawl space as liquid, not just as vapor from the soil. Standing water after rain, wet soil along the base of the walls, a tide line on piers or block, or a sump pit that fills all point to liquid water. A crawl space that is humid but never wet does not need a drain; it needs a vapor barrier, sealed vents and a dehumidifier. The inspection makes that distinction before anything is recommended, looks at the gutters, downspouts and grade outside, and will tell you when the fix is outside the house.

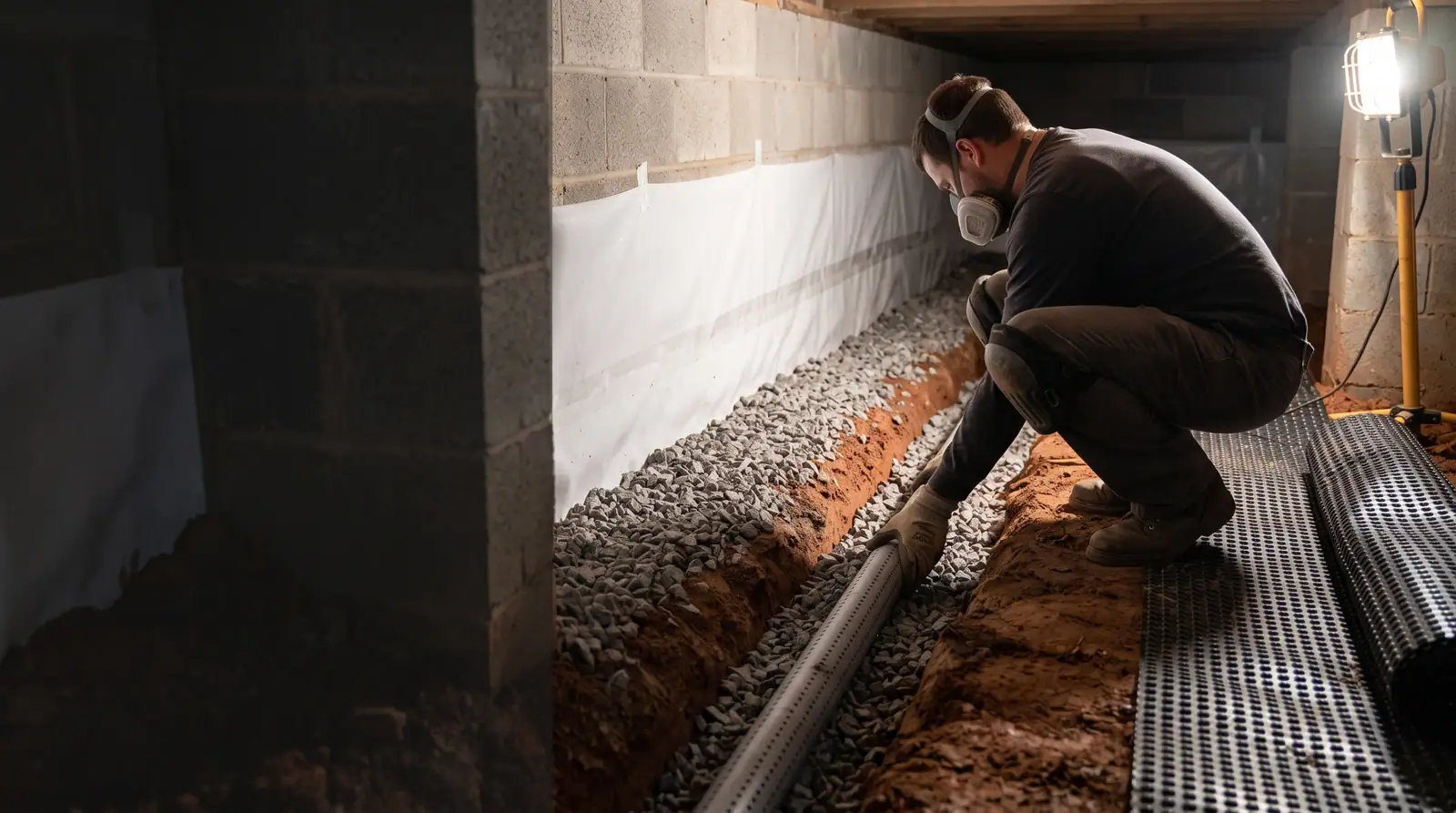

How does it work? Water entering through or under the block wall runs down to the footing. A trench dug along the inside of the footing, filled with gravel around perforated pipe, intercepts it there. The pipe is sloped toward a sump basin at the lowest point, so water moves by gravity and the pump does the lifting. A drain does not stop water from reaching the foundation. It gives water that arrives a controlled route out.

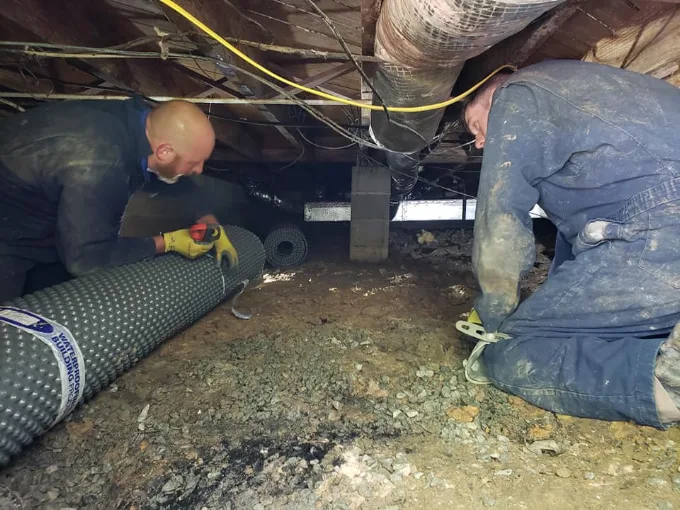

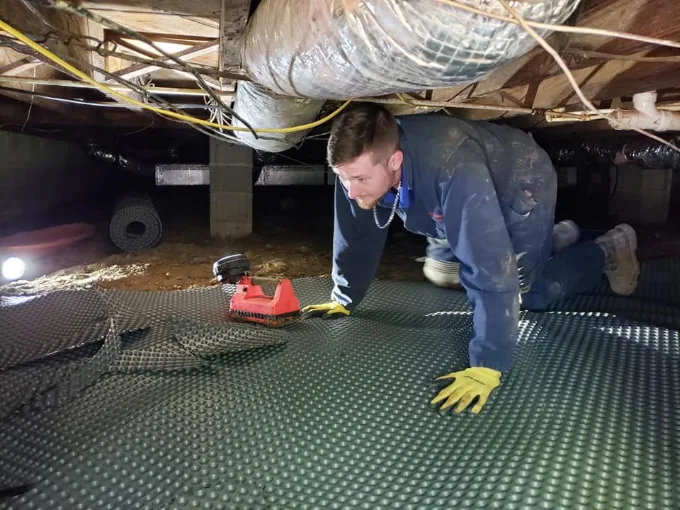

What should you expect during the work? Trenching by hand in a crawl space is slow, and the spoil has to come out through the access door. The sump basin is set, the pipe and gravel are laid and connected, and the pump and discharge line are installed and tested by running water into the basin. A battery backup for the pump is optional and worth discussing if power outages are common where you live. Once the drain is tested, the vapor barrier is laid over it, with the barrier sealed to the sump lid.

The limit is that a drain manages water that gets in; it does not dry the air. That is why it is one step in a sequence rather than the whole answer, and why we install it first, ahead of the barrier, wall insulation, sealed vents and dehumidifier that make up the rest of an encapsulation.
